O.S - MAX 105HZ DRS Helicopter Engine
Manufacturer: O.S Engines Product Code: 18751M
MAX 105HZ DRS Helicopter Engine

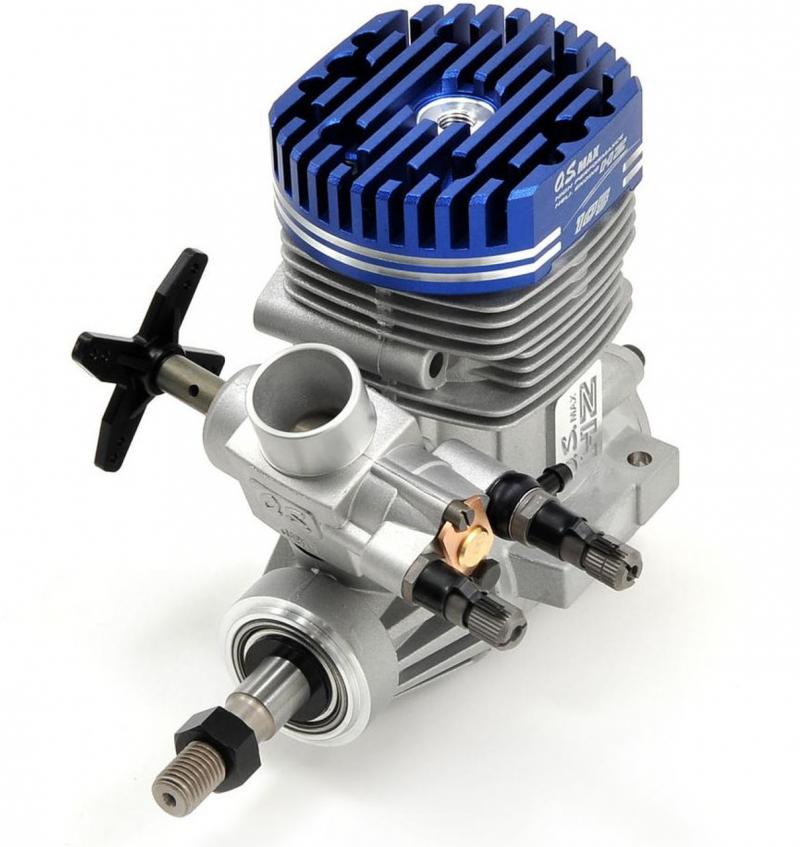

This is the O.S. Max 105 HZ Helicopter Engine. This is the engine precision aerobatic and 3D heli pilots have been waiting for! In order for 90-sized machines to nail huge maneuvers and hardcore, smackdown-style 3D it's all about power, and the 105HZ has it in abundance. Displacement has been increased by 15%, while a huge venturi rams air into the carburetor, producing massive power. Plus, they fit in a .90-sized mounting pattern.
Key Features:
- Featuring the displacement of a 1.05 in the mounting space of a .90.
- More displacement means more power, and these engines boost displacement by 15%!
- A huge venturi boosts output even further.
- The machined, blue anodized heatsink head is light in weight, and cools the engine efficiently.
- Velocity stack increases airflow and enhances engine performance
- Pressurized DRS (Demand Regulator System) ensures consistent fuel flow regardless of the helicopter attitude
- Backplate accepts the Futaba BPS-1 RPM sensor for the GY701 and CGY750 gyros
- Ideal bore and stroke ratio for lowest vibration
What's In The Box?
- (1) 105HZ-R DRS 1.05 cu in Helicopter Engine with 61G Carburetor
- (1) #8 Glow Plug
- (1) Air Funnel
- (1) Check Valve
- (1) 0.1mm Head Gasket
- (1) 0.2mm Head Gasket (installed)
- (1) Product manual
Required for Operation (Not Included)
- Fuel: Heli blend with 15% nitro content
- Glow starter and field equipment
Technical Specifications:
| Cylinders | Single |
| Product Width | 2.4 in (61 mm) |
| Total Weight | 21.5 oz (608 g) |
| Displacement | 1.048 cu in (17.17 cc) |
| Product Length | 3.2in (82.6 mm) |
| Bore | 1.14 in (29 mm) |
| Power Type | Glow |
| Plug Type | #8 glow plug |
| Stroke | 1.02 in (26 mm) |
| Product Height | 3.1 in (79 mm) |
| RPM Range | 2,000 - 16,500 rpm |
| Crankshaft Threads | UNF5/16-24 |
