RCNZ - MMI-6S2R1KC 12V Electric Brushed Motor with Belt Pulley
Manufacturer: RCNZ Product Code: 6S2R1KC-PULL

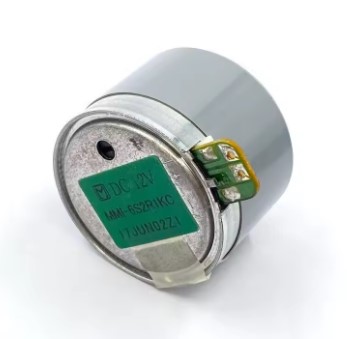

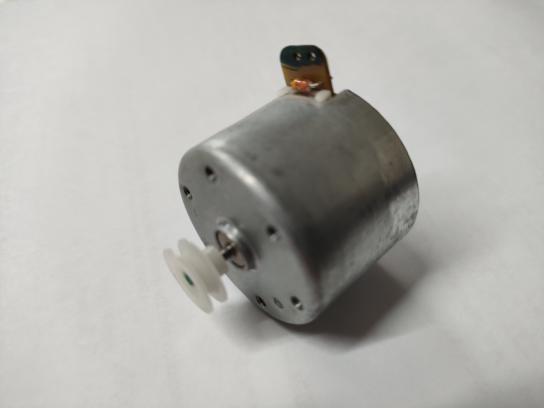

MMI-6S2R1KC 12V Electric Brushed Motor with Belt Pulley
The Minebea-Matsushita brushed motor, replacement for Mabuchi EG-530AD-2F motor.

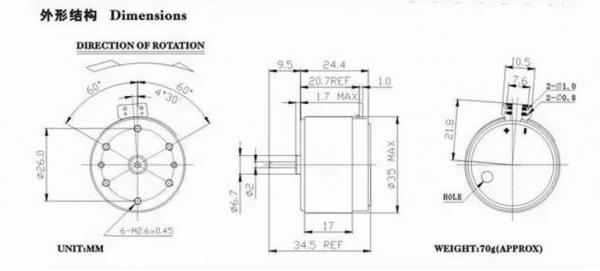

Motor diameter: 34mm
Motor height: 25mm (excluding output shaft)
Output shaft: 2mm
Output shaft length: 9mm (front the panel)
Weight: 61g
Rated voltage: DC 12V Speed 2400rpm
No-load current: 27mA
Rotation: CW ("Clockwise")
Reference data from Mabuchi EG-530AD-2F
