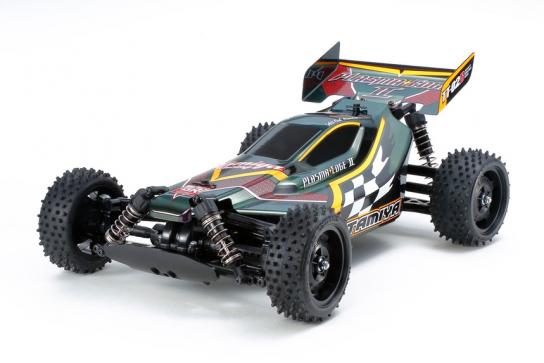

Tamiya - 1/10 Plasma Edge II Irid. Purple/Green TT-02B Kit

Manufacturer: Tamiya Product Code: 47454


1/10 Plasma Edge II Irid. Purple/Green TT-02B Kit

Out of
stock
$270.00
Dispatch
Out of Stock
In-Stock Alert
We'll email you when it's in stock

This is a Limited-Edition version of the Plasma Edge II off-road buggy. The body is pre-painted in Tamiya’s PS-46 Iridescent purple/green color. The body sits on top the easy to build TT-02B chassis for fun off-road driving!

Shaft-Driven 4WD TT-02B
The shaft-driven 4WD TT-02B buggy chassis uses a skid-shaped frame. Its suspension setup uses 4-wheel independent double wishbone suspension with long arms, plus CVA shock units, giving the car assured handling, while left and right suspension arms and uprights are identical to facilitate hassle-free assembly. Front and rear gearboxes include 4-bevel differentials for smooth operation, and are sealed to ensure that dust can't get inside. The top can be removed simply by loosening four screws, making maintenance a breeze. Four different gear ratios can be applied with the use of three separately-sold types of pinion gears, allowing you to match the characteristics of your car setup to the conditions at any given time. Of course, this off-road chassis also includes receiver case and motor cover to protect them from dirt and debris thrown up off of the track.

• 1/10 scale R/C model assembly kit. Length: 370mm, width: 250mm, height: 160mm.
• Polycarbonate body and wing are pre-painted in PS-46 Iridescent purple/green, and pre-cut.
• Stickers have a dedicated color scheme dedicated for this model.
• The TT-02B chassis is the buggy evolution of Tamiya's popular 4WD entry level unit, the TT-02 chassis.
• Bathtub-type frame has longitudinal battery and R/C mechanism placed flat for low center of gravity.
• 4-wheel double wishbone suspension features long arms and CVA shock units, and is combined with high grip square spike tires that provide excellent traction.
• Front and rear gearboxes have gear differentials to ensure smooth cornering.
• A wide range of Hop-Up Option parts are available to tune the TT-02B chassis.
• Includes 540-type motor.
• Includes 320A ESC.
• Requires: 2-Channel Radio, servo, 7.2-7.4volt battery pack & compatible charger.

Specifications

  • Adjustable Gear Ratio Yes
  • Bearings Plastic bushing
  • Body Material Polycarbonate pre-painted body
  • Body Stickers Included
  • Chassis Material ABS Plastic
  • Chassis Type TT-02B
  • Construction Type Assembly Kit
  • Differential Type Gear
  • Drive Type 4WD
  • Electronic Speed Control (ESC) Included
  • Motor 540-brushed type
  • Requires A 2-channel radio, steering servo, 7.2volt battery & battery charger
  • Scale 1/10
  • Shock Damper CVA Oil Filled
  • Suspension 4-wheel fully independent double wishbone
  • Terrain Use Off-Road
