Kyosho - Calmato Alpha 40 Trainer ARF EP/GP Kit

Manufacturer: Kyosho Product Code: KYO 11252R-C

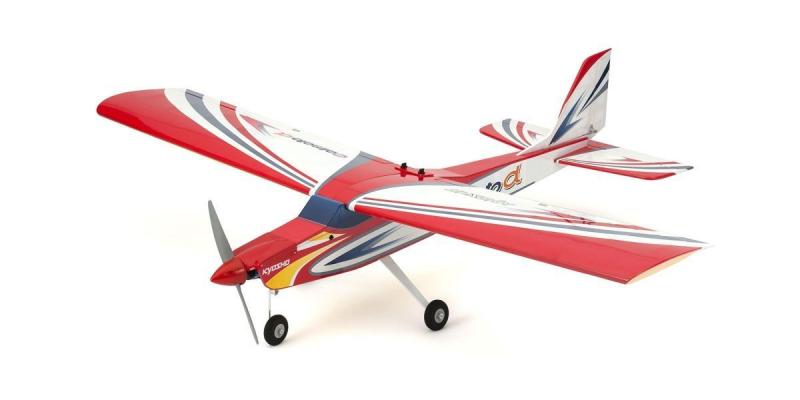

11252R-C  Calmato Alpha 40 trainer ARF EP/GP Kit - Red
Designed for either EP or GP power source

Out of
stock
$420.00
Dispatch
Out of Stock
In-Stock Alert
We'll email you when it's in stock

Superior stall characteristics produce Kyosho's unique beginner airplane performance!
Can be flown as either GP or EP, even after purchase!

Kyosho has committed all of its knowledge built up from many years in high-performance trainer design to produce the exceptional stability and control of the CALMATO ALPHA 40. Even under the sometimes rough control of beginners, the CALMATO responds calmly and maintains its posture if the airplane stalls at slow speed to provide new fliers with the ideal characteristics for flight training. The design is also compatible with either EP or GP power sources. Electric motor power can be used for those who prefer quiet flight without the mess of oil, while gas engine power is the option for those who prefer the throaty sound of an engine and extra power. Parts required to fly with both power sources are included so you can fly either version, even after you purchase the model. Pre-covered in printed color film, no gluing is required for completion. Also, the main wing halves are joined by aluminum pins and controlled by independent aileron servos on each side. Compact and easy to transport, there has never been a sophisticated R/C airplane like the CALMATO that is so easy to manage. The CALMATO ALPHA 40 is your door to the fascinating world of R/C airplane flight.

  • Designed with calm control and high stability ideal for newcomers to R/C.
  • Compatible with both EP and GP power sources.
  • No gluing required for completion.
  • Pre-covered in printed film for a vivid color scheme.
  • Aluminum pipe pins join the main wing halves that can be separated for easy transport.
  • Vertical fin, servo bed, ailerons and rudder are all pre-installed.
  • Can be flown with 4-cell 14.8V Li-Po battery power.
  • Lightweight balsa fuselage structure provides energetic flight performance.
  • Features rudder connected steering nose wheel.
  • Equipped with pre-installed flexible pipe for rudder and elevator linkage rods.
  • Pre-assembled fuel tank installed.
  • Includes stylishly painted cowl for EP version. Creates different impression to the GP version.
  • Spinner, linkage parts set and lightweight foam tires are included.

    SHIPPING COST IS $30 ON THIS ITEM DUE TO OVERSIZE
Technical Data

Length 1,300mm
Width 1,600mm
Weight EP/2,650g GP/2,550g
Motor 600~1000W Backplate mounted brushless outrunner
(sold separately)
Engine 2-cycle 40-46 class (sold separately)
Battery 14.8V-4,000-5,000mAh Li-Po (sold separately)
Wing Area 44dm2
Wing Load 57.9~62g/dm2
Wing Type Original semi-symmetrical
Propeller D11 x P7-D12 x P8 (sold separately)



Required for operation

  • R/C system/ 4-channel, 4-servo + ESC (EP), 5-servo (GP) for airplanes
  • Motor/ 600-1000W Backplate mounted brushless outrunner (EP)
  • Engine/ 2 cycle 40-46 class (GP)
  • Propeller/ D11 x P7-D12 x P8
  • Extension Y-cord for aileron x 1, 200mm extension cord x 2
  • 14.8V-4,000-5,000mAh Li-Po battery (EP) (max dimensions: L150xW48xH58mm)
  • Charger compatible with LiPo balance charging (EP)
  • Fuel, Starting tools (GP)
  • Batteries for receiver (EP/GP) **Required for EP if LiPo battery can not be used with BEC power of ESC
