FEATURES
- Powerful S.BUS2 digital servo with plastic gearbox
- Low-wear potentiometer
- Robust plastic housing
- High resolution
- High positioning accuracy

DESCRIPTION

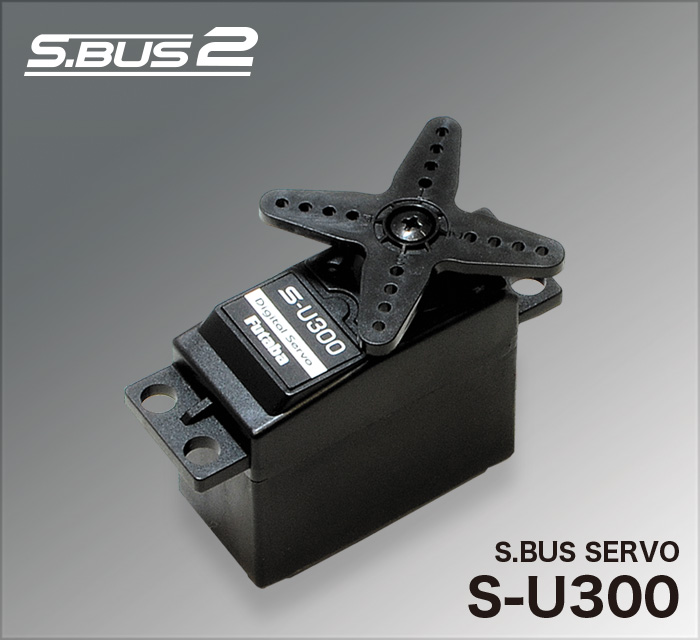

Robust universal servo with high actuating force of 41 Ncm. High vibration resistance and long service life due to wireless assembly technology. The reset potentiometer has a 6-way sliding contact with indirect drive. State-of-the-art technology at an affordable price.

Programmable by S.BUS2 technology. Of course, all S.BUS2 servos can be connected to conventional receivers with PWM modulation. The servos can be addressed in various ways:

1. with the handy programmer SBC-1
2. at the PC with the USB adapter CIU-3
3. at the S.BUS connection of the transmitter

The following parameters can be set:
- S.BUS channel assignment
- servo reversal
- Servotype (Normal / retractable)
- Soft start (On / Off)
- Mode selection in case of signal failure Hold or Free
- Soft servo run (on / off)
- Servo position (servo tester)
- Servo center adjustment +/- 300 µs (approx. 30 degrees)
- Servo speed, 0.39 - 9 seconds per 45 degrees
- Setting the Deadband (Deadband)
- Servo travel adjustment left and right separated, approx. 50 - 175%
- starting force
- attenuation
- holding force
- ID storage

TECHNICAL DATA
- Actuating speed 60°: 0.19 / 0.23 s (6.0 / 4.8 V)
- Actuating torque: 4,1 / 3,2 kgcm (6,0 / 4,8 V)
- Operating voltage: 4.8 - 6.0 V
- Control frequency: 50 - 70 Hz
- Weight: 36 g
- Dimensions: 40.4 x 19.8 x 36 mm
