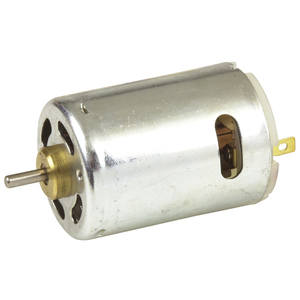

Standard (High Power) D.C. Motors 11000 RPM

All units feature hard steel drive shafts, long life design and are built in an ISO 9002 quality environment.

Voltage (V)

No load 12.0
Speed (RPM) 11000
Current (AMP) 0.8
Operating Range (V) 6-12

At Stall

Torque (kg/cm) 2.7
Current (AMP) 26

At Max Efficiency

Efficiency (%) 76
Power (W) 34.5
Speed (RPM) 9000
Torque (kg/cm) 0.35
Current (A) 4.7

Dimensions

Diameter (mm) 36
Total Length (mm) 71
Shaft Length (mm) 10
Shaft Diameter (mm) 3.17
Mounting Thread M3
