Tamiya - 1/10 Racing Fighter DT-03 Kit
Manufacturer: Tamiya Product Code: 58628

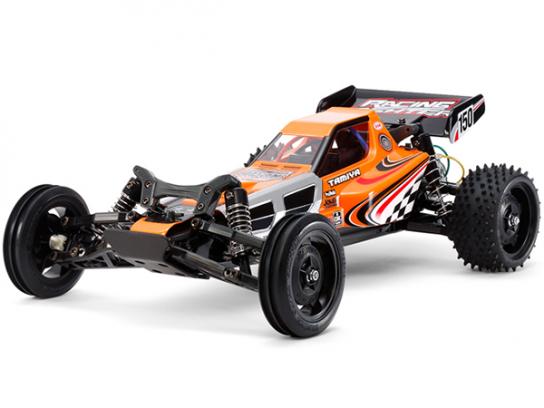

58628 1/10 Racing Fighter DT-03 Kit
The Racing Fighter is mounted on the fun and easy to build DT-03 chassis platform. Intended as an easy-to-get-started model to encourage young drivers to enter the world of R/C, its intuitive yet tough design allows hassle-free assembly and gives less experienced users the opportunity to get to grips with R/C model composition and construction.
This kit features a brand new polycarbonate body design with attractive, boxy lines and a stylish rear wing. This kit includes an added bonus! It features a torque-tuned motor and CVA oil dampers to make it faster out of the box. The CVA oil dampers allow the chassis to better handle the rugged terrain of any park or dirt field.
DT-03 Chassis at a glance:
The stylish slim-line form of this chassis stems from its lightweight yet durable monocoque frame, which features a longitudinally-positioned battery and the R/C equipment along the centerline for excellent balance. The combination of a long 287mm wheelbase and 4-wheel double wishbone suspension married to CVA oil dampers with long arms, allows the model to handle with stability on poor surfaces. Ribbed front and square spike rear tires provide ample grip, and the rear-positioned gearbox is sealed to protect from dust and dirt, with the built-in differential gear offering smooth cornering.
Product Specifications (Specifications subject to change)
Type | Detail |
---|---|
Scale | 1/10 |
Construction type | Assembly kit |
Terrain use | Off-Road |
Drive-train | 2WD |
Drive type | Gearbox |
Drive line | Dog bone |
Differential type | Gear |
Suspension | Fully independent double wishbone |
Steering mechanism | Direct servo |
Shock damper | Oil-filled damper |
Shock damper material | Plastic |
Tire type | Rubber |
Tire tread | Pin spike |
Body material | Polycarbonate |
Chassis material | Plastic |
Electronic Speed Control (ESC) | Not included |
ESC model | Not included |
LED Light buckets | No |
LED lights | No |
Motor | 540-brushed type |
Bearings | Plastic bushing |
Adjustable camber | Fixed |
Adjustable toe angles | Front only |
Adjustable ground clearance | Yes |
Adjustable gear ratio | Yes |
Adjustable wheelbase | Fixed |
Adjustable track width | Fixed |
Adjustable shock angle | Fixed |
Special feature 1 | Features a stylish body molded in durable and lightweight polycarbonate. Brand new stickers are included to decorate the model. |
Special feature 2 | The DT-03 uses a tough monocoque frame. Big wheelbase (288mm) and tread (front: 221mm, rear: 208mm) measurements give it great performance off-road! |
Special feature 3 | Front arms are at a 25-degree angle for great off-road driving. Dampers are high-performance CVA oil shocks. |
Special feature 4 | A torque-tuned motor is included. |
Special feature 5 | Features a sealed rear gearbox with internal gear differential unit, plus a dust cover for R/C equipment. |
Special feature 6 | A wide range of option parts is available to tune and customize your DT-03 chassis car. |
Requires A | 2-channel radio gear and ESC |
Requires B | 7.2 battery & charger |
Requires C | Polycarbonate paint |
